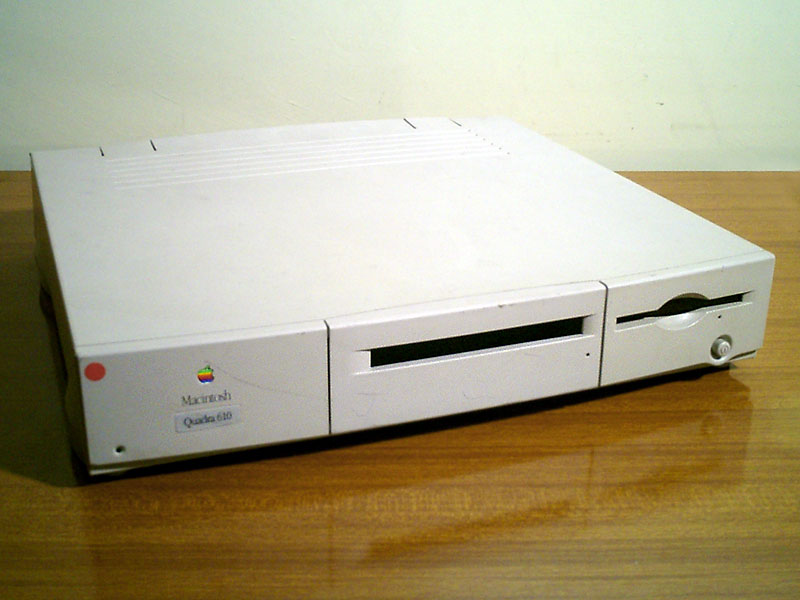

personal computer by Apple

Finding the market confused with five product lines (Mac II, Centris, Quadra, Performa, and PowerBook), Apple renamed the Centris models in October 1993.

At the same time, the CPU in the Centris 610 was boosted from 20 MHz to 25 MHz. (The 8/160 version sold in the U.S. was based on the less expensive 68LC040 chip.)

See our NuBus Video Card Guide for information on adding a NuBus video card, which also requires a NuBus adapter.

Specs (via Low End Mac)

• Cpu: 25 MHz 68040 (68LC040 only on 8/160 sold in U.S.)
• Performance: 12.1 (relative to SE); 7.93, MacBench 2.0 CPU
• Ram: 4 MB on motherboard, expandable to 68 MB using 80ns 72-pin SIMMs; motherboard has 2 SIMM slots, which can be filled independently; can use 4 MB, 8 MB, 16 MB, and 32 MB SIMMs. If SIMMs are not the same speed, faster SIMM should be in bank 0 (frontmost slot).
• Rom: 1 MB
• L2 Cache: optional, PDS
• Hard Drive: 160 or 230 MB
• Video: 512 KB VRAM, expandable to 1 MB 512 x 384 @ 16-bit 640 x 480, 800 x 600, 832 x 624: 8-bit @ 512 KB, 16-bit @ 1 MB 832 x 624, 1024 x 768, 1152 x 870: 4-bit @ 512 KB, 8-bit @ 1 MB
• Addressing: 24-bit or 32-bit
• Gestalt Id: 53
• Upgrade Path: Power Mac PDS card , Power Mac 6100 (requires some case modification)
• Adb: 2 ports for keyboard and mouse
• Scsi: DB-25 connector on back of computer
• Serial: 2 DIN-8 RS-422 ports on back of computer
• Pram Battery: 3.6V half-AA
• Weight: 14 lb.
• See: Online resources and links for the Quadra 610
