personal computer by Apple

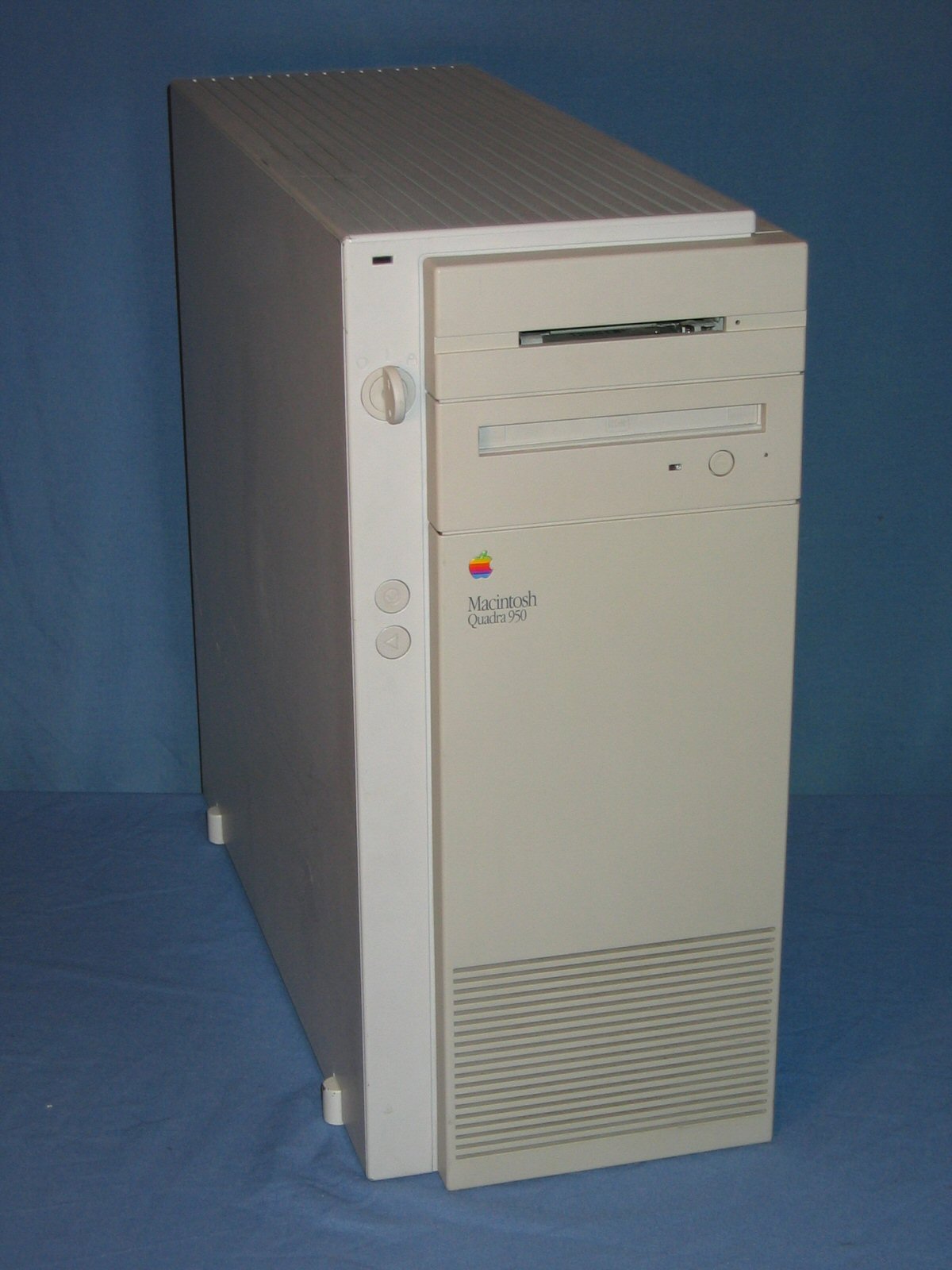

Apple replaced the Quadra 900 with the 950, boosting CPU speed from 25 MHz to 33 MHz. Because Apple removed some “wait states” from the video section, the 950’s internal video is about 20% faster than the 900’s – and the faster CPU helps things along even more. The 950 can display 16-bit video on a 19″ monitor without the need for a third-party video card.

The Quadra 950 is built like a tank and obviously designed to sit on the floor. With 16 SIMM slots, you can add incredible amounts of memory, along with plenty of huge hard drives. This is obviously designed to be used as a server.

According to Apple, the monstrous power supply can support two 25-watt NuBus cards and three of the more typical 15-watt cards.

Specs (via Low End Mac)

• Cpu: 33 MHz 68040
• Performance: 14.7, relative to SE; 10.14, MacBench 2.0 CPU; 21.9, Speedometer 3; 1.19, Speedometer 4; 29 MIPS (see Benchmarks: Quadra 950 for more test results)
• Ram: 4 MB, expandable to 256 MB using 80ns 30-pin SIMMs; motherboard had 4 banks of 4 SIMM slots; can use 1 MB, 4 MB, 8 MB, and 16 MB SIMMs (8 MB and 16 MB SIMMs are not supported by Apple)
• Rom: 1 MB
• L2 Cache: optional, PDS
• Hard Drive: 230 MB, 500 MB, or 1 GB
• Video: 1 MB VRAM, expandable to 2 MB; internal video does not support 16-bit mode 512 x 384: 24-bit 640 x 480, 832 x 624: 8-bit @ 1 MB, 24-bit @ 2 MB 1152 x 870: 8-bit
• Addressing: 32-bit
• Gestalt Id: 26
• Upgrade Path: Power Mac PDS card; Power Mac 9500
• Adb: 2 ports for keyboard and mouse
• Scsi: separate internal and external busses, DB-25 connector on back of computer, max. 4.4 MBps read
• Serial: 2 DIN-8 RS-422 ports on back of computer
• Pram Battery: 3.6V half-AA
• Weight: 36.8 lbs.
• Cd-Rom: 2x
• Nubus: 5 NuBus 90 slots
• See: Online resources and links for the Quadra 950
