laptop by Apple

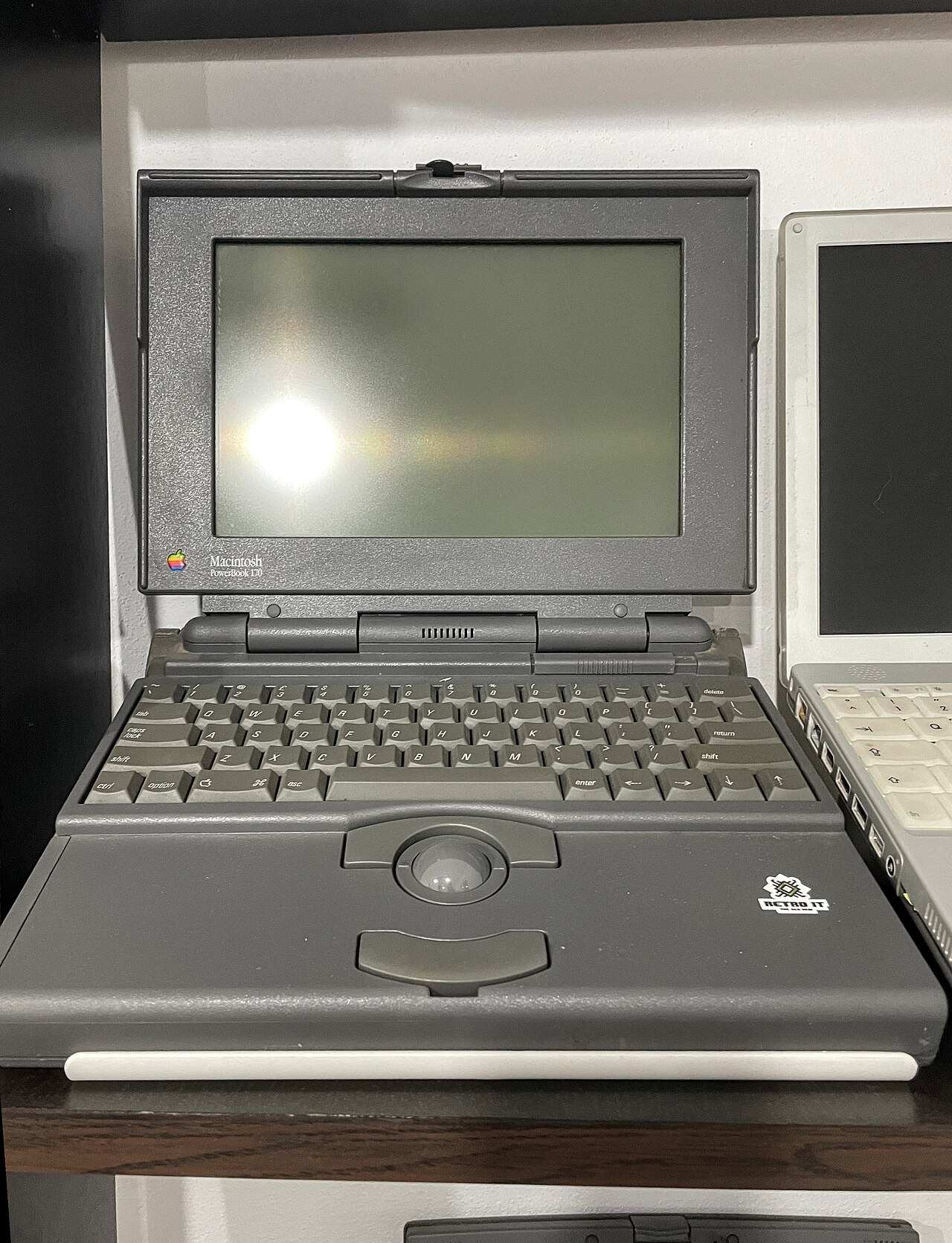

The PowerBook 170 was the only first generation PowerBook to sport an active matrix screen. With a 25 MHz 68030, it was 2/3 faster than the PowerBook 140 . Between the faster CPU, faster screen, and addition of a floating point unit, the 170 was nearly twice as fast as the 140. It was replaced by the popular PowerBook 180 in October 1992.

Apple released two special editions of the PowerBook 170: a multicolored version for the Japan LPGA and a white “10th Anniversary Mac” version in 1994.

As with all early PowerBooks, when buying one be sure it has all the memory you need (new PB RAM is difficult to locate, especially at reasonable prices).

Specs (via Low End Mac)

• Cpu: 25 MHz 68030
• Fpu: 68882
• Ram: 2 MB, expandable to 8 MB using a special 100ns pseudo static RAM card
• Rom: 1 MB
• Hard Drive: 40 or 80 MB
• Floppy Drive: 1.4 MB double-sided
• Display: 9.8″ 1-bit 640 x 400 77 ppi active matrix
• Gestalt Id: 21
• Code Names: Road Warrior, Tim
• Adb Ports: 1 port for keyboard and mouse
• Weight: 6.8 pounds
• Serial Ports: 2 DIN-8 RS-422 ports on back of computer
• Scsi Ports: HDI30 connector on back of computer
• Power Supply: M5140 – 15W, 2 amps
• See: Online resources and links for the PowerBook 170
