laptop by Apple

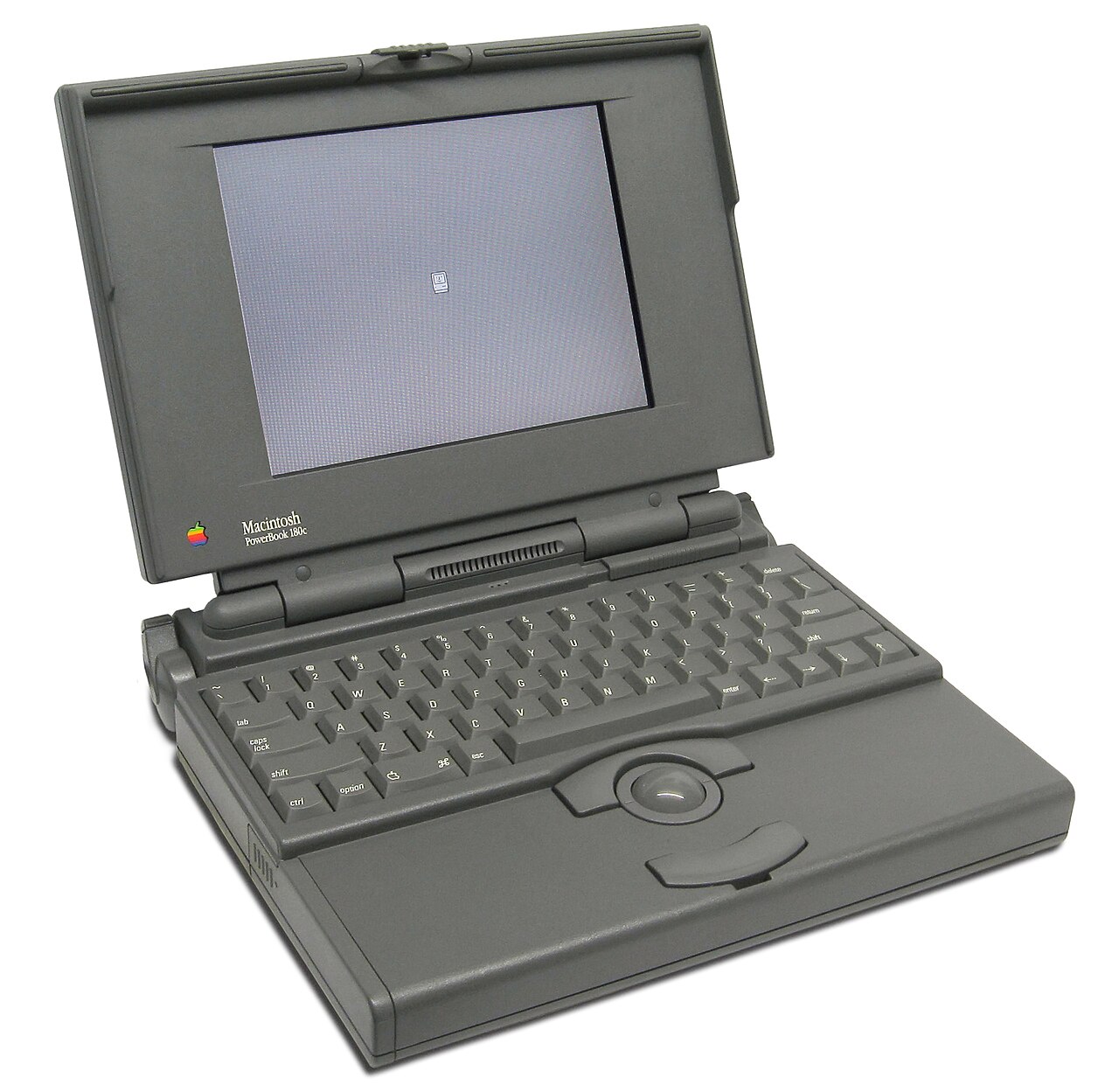

The PowerBook 180 was the first portable Mac with a 4-bit (16-shade) active matrix display. With a 33 MHz CPU and improved screen, it replaced the 25 MHz PowerBook 170 and was in very high demand through its six-month life.

Like the PowerBook 160 , the 180 has a video out port supporting an external 13″ to 16″ monitor. With the 160, it was the first PowerBook to support an external monitor (using Apple’s proprietary VID-14 connector with an adapter) and the first PowerBook to support more than 8 MB of RAM.

The 180 reintroduced SCSI Disk Mode to the PowerBook line, a feature previously found only on the PowerBook 100 .

Specs (via Low End Mac)

• Cpu: 33 MHz 68030
• Fpu: 68882
• Performance: 4.5, relative to SE; 0.54, Speedometer 4
• Ram: 4 MB, expandable to 14 MB using a special 85ns pseudostatic RAM card
• Rom: 1 MB
• Video: 512 KB VRAM, VID-14 port, supports 8-bit external video at 512 x 384, 640 x 400, 640 x 480, 800 x 600, and 832 x 624 with video adapter
• Display: 9.8″ 640 x 400 77 ppi 4-bit active matrix
• Gestalt Id: 33
• Code Name: Converse
• Adb Ports: 1 port for keyboard and mouse
• Weight: 6.8 pounds
• Serial Ports: 2 DIN-8 RS-422 ports on back of computer
• Scsi Ports: HDI30 connector on back of computer
• Power Supply: M5651 – 19W, 2 amps
