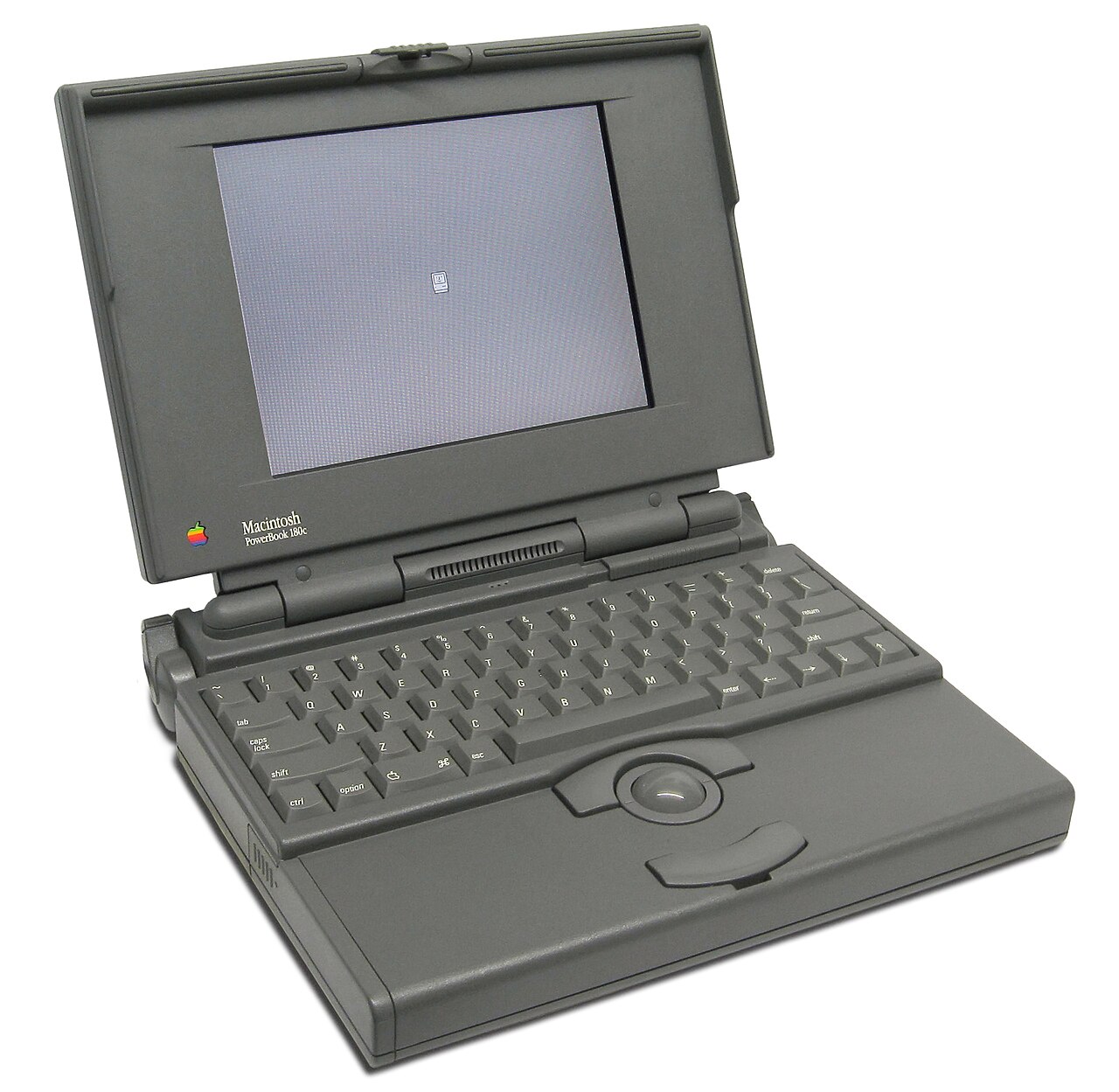

<span>PowerBook 180c</span>
Family
PowerBook
Architecture
68K
CPU
33 MHz 68030
Clock speed
33
Introduced
June 1993
Discontinued
March 1994

The PowerBook 180c added an active matrix 256-color screen to the already popular PowerBook 180 . The color screen took its toll on the battery, reducing usable life to aboone1 hour.

The PB 180c has a 14 MB memory ceiling, although you can go beyond that by using Virtual Memory (slow and free) or RAM Doubler (faster, not free, and discontinued). Another option is RAM Charger 8.1 , which offers better memory management than the Mac OS.

As with all early PowerBooks, when buying one be sure it has all the memory you need – new PB RAM is difficult to locate, especially at reasonable prices.

Specs (via Low End Mac)

  • Cpu: 33 MHz 68030
  • Fpu: 68882
  • Ram: 4 MB, expandable to 14 MB using a special 85ns pseudostatic RAM card
  • Rom: 1 MB
  • Video: 512 KB VRAM, VID-14 port, supports 8-bit external video at 512 x 384, 640 x 400, 640 x 480, 800 x 600, and 832 x 624 with video adapter
  • Display: 8.4″ 8-bit 640 x 480 95 ppi color active matrix
  • Gestalt Id: 71
  • Code Name: Hokusai
  • Adb Ports: 1 port for keyboard and mouse
  • Weight: 7.1 pounds
  • Serial Ports: 2 DIN-8 RS-422 ports on back of computer
  • Scsi Ports: HDI30 connector on back of computer
  • Power Supply: M5652 – 24W
  • See: Online resources and links for the PowerBook 180c
