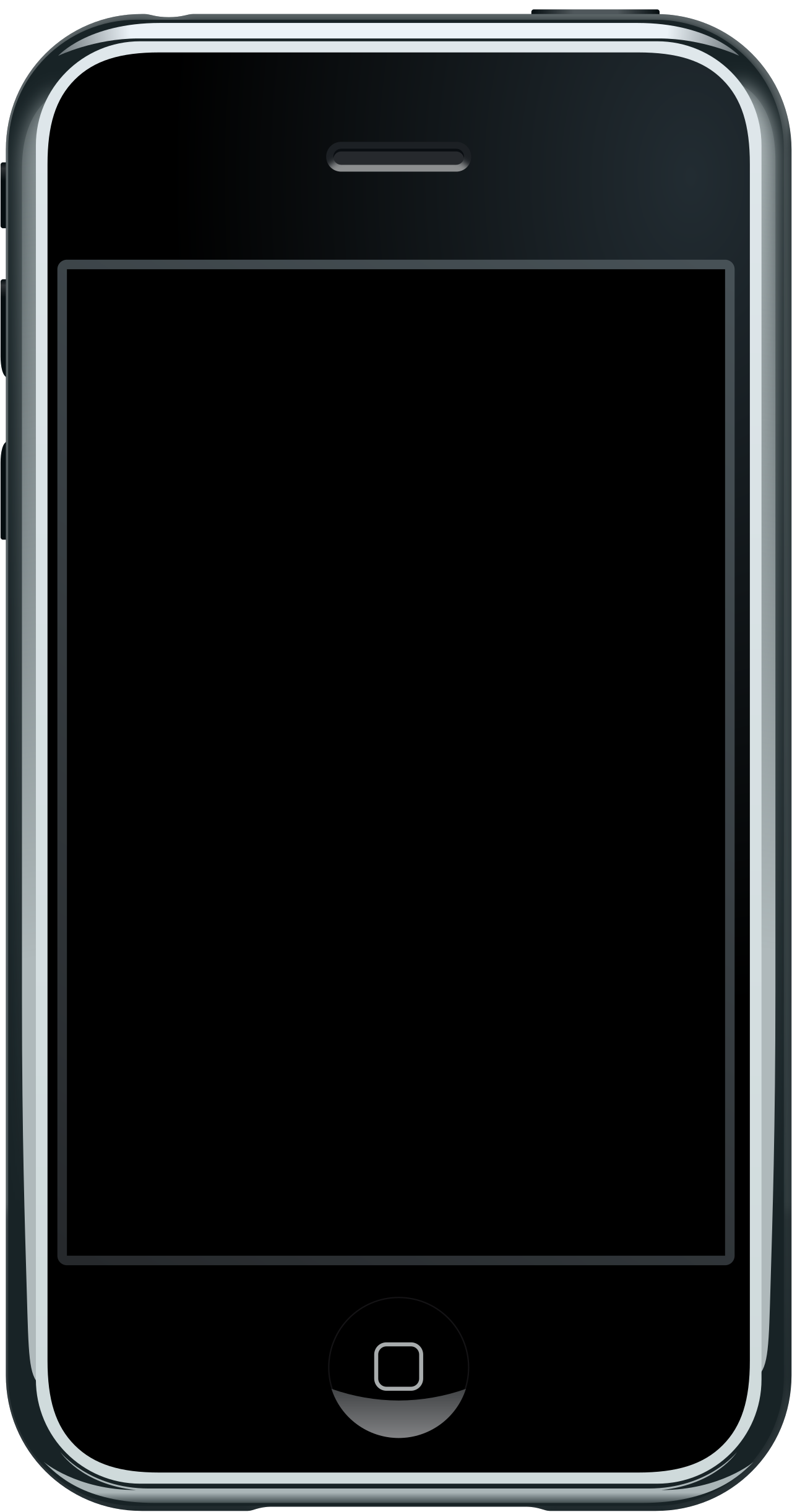

<span>iPhone 3GS</span>
Family
iPhone
CPU
833 MHz Samsung ARM Cortex-A8 clocked at 600 MHz
Introduced
June 2009
Discontinued

group of smartphone models produced by Apple Inc.

The iPhone 3G had been a step forward in some areas – especially in adding 3G data support – but in other areas it was no better than the original iPhone . With the iPhone 3GS, Apple took a few more steps forward with a faster processor, a better camera, video capability, and a 32 GB option.

The iPhone 3GS looks very similar to the original iPhone, but with the same plastic back as the 3G. The more efficient CPU runs nearly 50% faster than in the previous model, doubling overall performance, and it has twice as much system memory to work with. It has a 3 MP autofocus camera and supports video for the first time – albeit only 640 x 480 VGA. It was also the first iPhone with a 24-bit color display.

The 3GS was introduced in 16 GB and 32 GB versions, with the 8 GB model added in June 2010 when the iPhone 4 was introduced. The 8 GB iPhone 3GS remained in production until September 2012.

Specs (via Low End Mac)

  • Announced: 2009.06.08, available 2009.06.19 at $199 (16 GB) and $299 (32 GB) with a two-year AT&T Wireless contract, $599 and $699 respectively without contract. 8 GB model added 2010.06 with introduction of iPhone 4, originally $99 with two-year contract.
  • Cpu: 833 MHz Samsung ARM Cortex-A8 clocked at 600 MHz
  • Ram: 256 MB
  • Video: up to 10 hours
  • Display: 3.5″ 320 x 480 pixel 24-bit multitouch screen @ 163 ppi
  • Code Names: N88
  • Weight: 4.8 oz. (135 g)
  • Dimensions: 4.5″ x 2.4″ x 0.48″ (115.5 x 62.1 x 12.3 mm)
  • Included Accessories: earbuds, USB 2.0 30-pin dock cable
  • Identifier: iPhone2,1
  • Model Number: A1303 (A1325 in China)
  • Architecture: 32-bit
  • Graphics Engine: PowerVR SGX535
  • Camera: 3.0 MP autofocus
  • Sensors: proximity, ambient light, accelerometer, assisted GPS, compass, Nike+iPod
  • I/O Port: 30-pin dock connector
  • Wifi: 802.11b/g
  • Bluetooth: 2.1+EDR
  • Networks: UMTS/HSDPA (850, 1900, 2100 MHz) GSM/EDGE (850, 900, 1800, 1900 MHz)
  • Data: GPRS (max 56-115 kbps), EDGE (max 327 kbps)
  • Gps: Infineon PMB2525 assisted by EDGE, 3G, and WiFi
  • Battery: 1220 mAh lithium ion
  • Charge Time: about 4 hours (2 hour fast charge to 80% capacity)
  • Battery Life: Talk: up to 5 hours on 3G, 12 hours on 2G Standby: up to 300 hours Internet: up to 5 hours on 3G, 9 hours on WiFi Video: up to 10 hours Audio: up to 30 hours
  • Talk: up to 5 hours on 3G, 12 hours on 2G
  • Standby: up to 300 hours
  • Internet: up to 5 hours on 3G, 9 hours on WiFi
  • Audio: up to 30 hours
  • Original Os: iPhone OS 3.0
  • Maximum Os: iPhone OS 6.1.6
  • Itunes Versions: iTunes 8.2 and later.
  • Mac Os Required: OS X 10.4.11 or later
  • Windows Versions Supported: Vista, XP Home or Professional SP 3 or later
