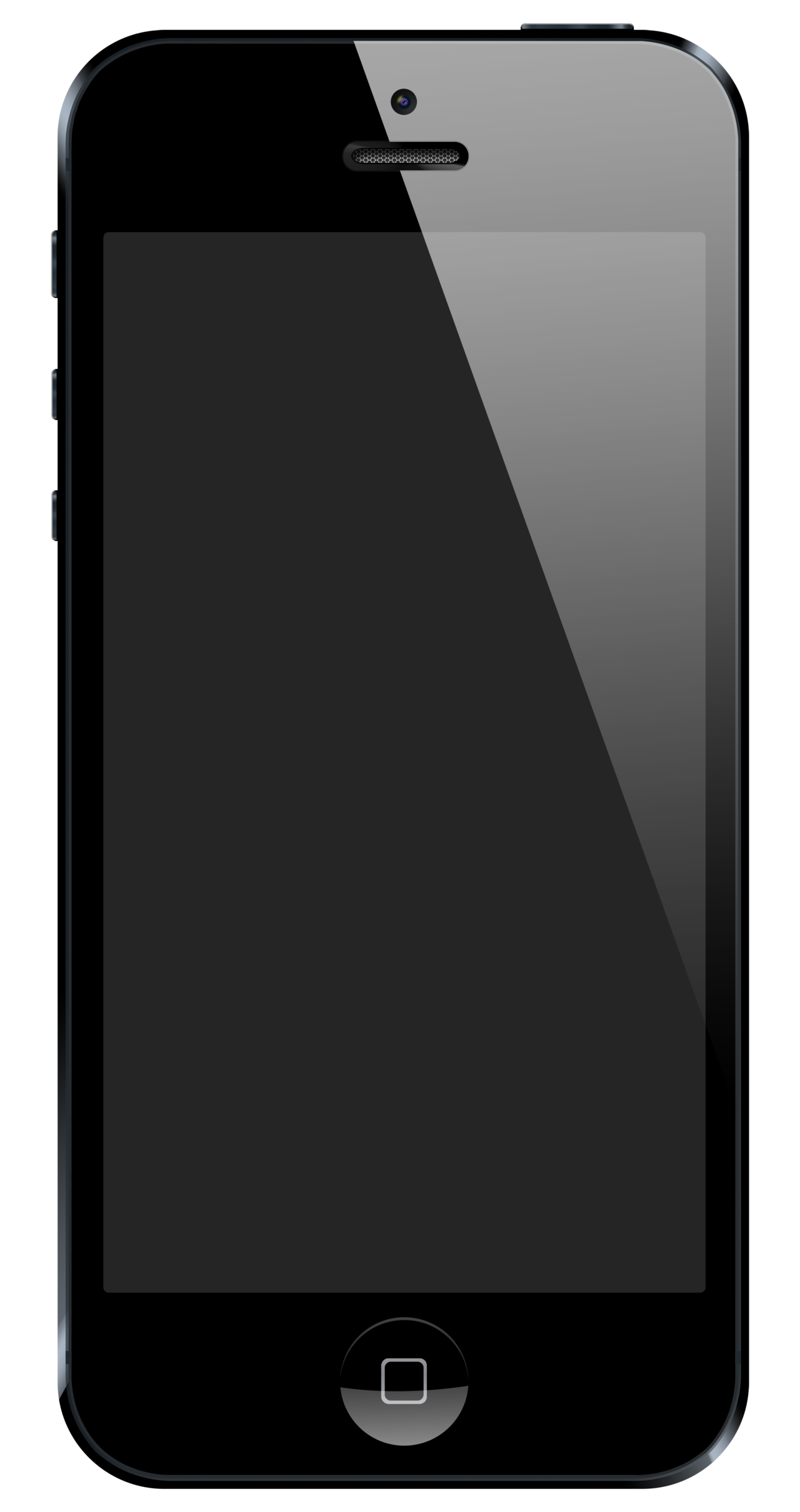

<span>iPhone 5</span>
Family
iPhone
CPU
1.3 GHz dual-core Apple A6
Introduced
September 2012
Discontinued

group of smartphone models produced by Apple Inc.

With the iPhone 5, Apple left behind the 3.5″ display every previous iPhone had used, replacing it with a taller (or wider – in landscape mode) 4″ screen displaying 1136 x 640 pixels, the same 16:9 aspect ratio of HD TV. That’s 18.3% more pixels.

The iPhone 5 runs Apple’s more powerful A6 processor, introduced Apple’s Lightning USB connector, is 18% thinner than the iPhone 4S , and despite its bigger screen is also 20% lighter than the 4S.

The iPhone 5 has a fully machined aluminum enclosure and shipped in either black and slate or white and silver.

Specs (via Low End Mac)

  • Announced: 2012.09.12 at $199 (16 GB), $299 (32 GB), and $399 (64 GB) with a two-year wireless contract. ($649, $749, and $849 respectively without contract.)
  • Cpu: 1.3 GHz dual-core Apple A6
  • Ram: 1 GB
  • Video: up to 10 hours
  • Display: 4.0″ 640 x 1136 pixel 24-bit multitouch screen @ 326 ppi
  • Code Names: N41
  • Weight: 3.95 oz. (112 g)
  • Dimensions: 4.87″ x 2.31″ x 0.30″ (123.8 x 58.6 x 7.6 mm)
  • Included Accessories: earbuds, lightning cable
  • Identifier: iPhone5,1 (GSM), iPhone 5,2 (GSM/CDMA)
  • Model Number: A1428 (GSM NA), A1429 (GSM Int’l and GSM/CDMA),
  • Gsm Na: MD634 (16 GB black), MD635 (16 GB white), MD636 (32 GB black), MD637 (32 GB white), MD644 (64 GB black), MD645 (64 GB white)
  • Architecture: 32-bit
  • Graphics Engine: 3-core PowerVR SGX543MP3
  • Cameras Rear: 8.0 MP autofocus with LED flash, 1080p video front: 1.2 MP FaceTime camera
  • Rear: 8.0 MP autofocus with LED flash, 1080p video
  • Front: 1.2 MP FaceTime camera
  • Sensors: proximity, ambient light, 3-axis gyroscope, accelerometer, assisted GPS, compass, Nike+iPod
  • I/O Port: Lightning
  • Wifi: 802.11b/g/n (2.4 GHz and 5.0 GHz)
  • Bluetooth: 4.0
  • Gsm & Cdma: CDMA EV-DO Rev. A and B (800, 1900, 2100 MHz), UMTS/HSDPA+/CD-HSDPA (850, 900, 1900, 2100 MHz, GSM/EDGE (850, 900, 1800, 1900 MHz), LTE (Bands 1, 3, 5, 13, and 25)
  • Gps: Infineon PMB2525 assisted by EDGE, 3G, and WiFi
  • Battery: 1440 mAh lithium ion
  • Charge Time: about 4 hours (2 hour fast charge to 80% capacity)
  • Battery Life: Talk: up to 8 hours Standby: up to 225 hours Internet: up to 8 hours on 3G, 10 hours on WiFi Video: up to 10 hours Audio: up to 40 hours
  • Talk: up to 8 hours
  • Standby: up to 225 hours
  • Internet: up to 8 hours on 3G, 10 hours on WiFi
  • Audio: up to 40 hours
  • Original Os: iOS 6
  • Maximum Os: current
  • Itunes Versions: iTunes 10.7 and later.
  • Mac Os Required: OS X 10.6.8 or later
  • Windows Versions Supported: 7, Vista, XP Home or Professional SP 3 or later
