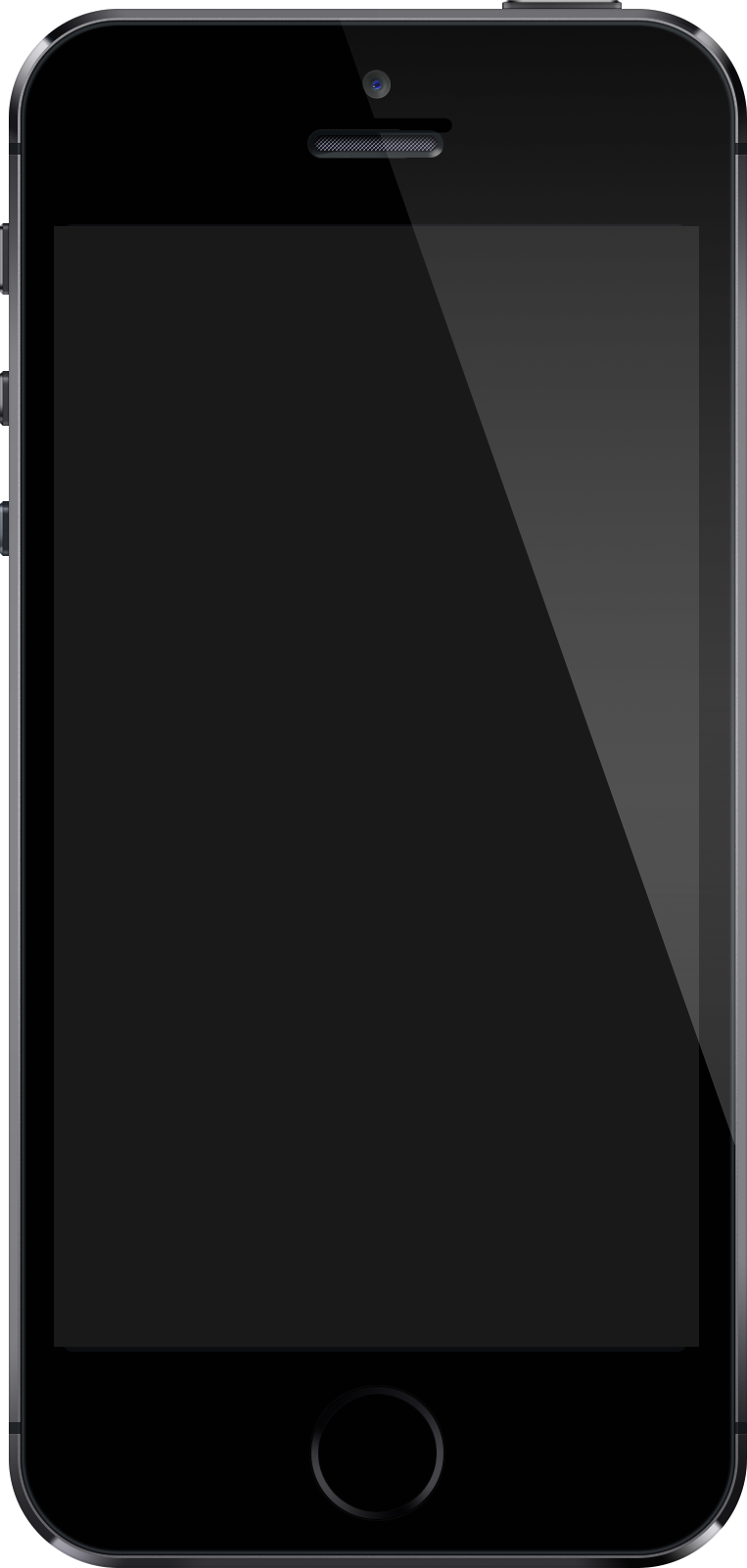

<span>iPhone 5S</span>
Family
iPhone
CPU
1.3 GHz 64-bit dual-core Apple A7
Introduced
September 2013
Discontinued

smartphone from Apple

The iPhone 5S marked the beginning of 64-bit power. While the Android world was going with 4-core 32-bit processors, Apple raised the bar with its dual-core 64-bit A7, which has about twice the power of the A6.

The iPhone 5S also introduced a built-in fingerprint sensor in the iPhone’s home button known as Touch ID. It was also the first iPhone available in gold.

The 5S has an improved camera and a dual-LED flash that can adjust for different lighting situations. Automatic HDR is standard on the 5S – it had been an user option on the 4S and 5. Digital image stabilization is also new with the 5S.

Specs (via Low End Mac)

  • Announced: 2013.10.10 and available 2013.10.20 at $199 (16 GB), $299 (32 GB), and $399 (64 GB) with a two-year wireless contract. ($649, $749, and $849 respectively without contract.)
  • Cpu: 1.3 GHz 64-bit dual-core Apple A7
  • Ram: 1 GB
  • Video: up to 10 hours
  • Display: 4.0″ 640 x 1136 pixel 24-bit multitouch screen @ 326 ppi
  • Code Names: N51
  • Weight: 3.95 oz. (112 g)
  • Dimensions: 4.87″ x 2.31″ x 0.30″ (123.8 x 58.6 x 7.6 mm)
  • Included Accessories: earbuds, lightning cable
  • Identifier: iPhone6,1 (GSM), iPhone 6,2 (GSM/CDMA)
  • Model Number: A1533 (GSM NA), A1453 (GSM Int’l and GSM/CDMA), A1457 (UK & Europe), A1530 (Asia & Oceania)
  • Architecture: 64-bit
  • Graphics Engine: 3-core PowerVR SGX543MP3
  • Cameras Rear: 8.0 MP autofocus with LED flash, 1080p video front: 1.2 MP FaceTime camera
  • Rear: 8.0 MP autofocus with LED flash, 1080p video
  • Front: 1.2 MP FaceTime camera
  • Sensors: proximity, ambient light, 3-axis gyroscope, accelerometer, assisted GPS, compass, Nike+iPod
  • I/O Port: Lightning
  • Wifi: 802.11b/g/n (2.4 GHz and 5.0 GHz)
  • Bluetooth: 4.0
  • Gsm Na: UMTS/HSDPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz), GSM/EDGE (850, 900, 1800, 1900 MHz), LTE (Bands 1, 2, 3, 4, 5, 8, 13, 17, 19, 20, 25)
  • Gsm & Cdma: CDMA EV-DO Rev. A and B (800, 1900, 2100 MHz), UMTS/HSDPA+/CD-HSDPA (850, 900, 1900, 2100 MHz, GSM/EDGE (850, 900, 1800, 1900 MHz), LTE (Bands 1, 3, 5, 13, 25)
  • Gps: Infineon PMB2525 assisted by EDGE, 3G, and WiFi
  • Battery: 1570 mAh lithium ion
  • Charge Time: about 4 hours (2 hour fast charge to 80% capacity)
  • Battery Life: Talk: up to 10 hours Standby: up to 250 hours Internet: up to 8 hours on 3G, 10 hours on LTE or WiFi Video: up to 10 hours Audio: up to 40 hours
  • Talk: up to 10 hours
  • Standby: up to 250 hours
  • Internet: up to 8 hours on 3G, 10 hours on LTE or WiFi
  • Audio: up to 40 hours
  • Original Os: iOS 7
  • Maximum Os: current
  • Itunes Versions: iTunes 11.1 and later.
  • Mac Os Required: OS X 10.6.8 or later
  • Windows Versions Supported: 7, Vista, XP Home or Professional SP 3 or later
