<span>iPhone 6 Plus</span>
Family
iPhone
CPU
1.4 GHz 64-bit dual-core Apple A8
Introduced
September 2014
Discontinued

group of smartphone models produced by Apple Inc.

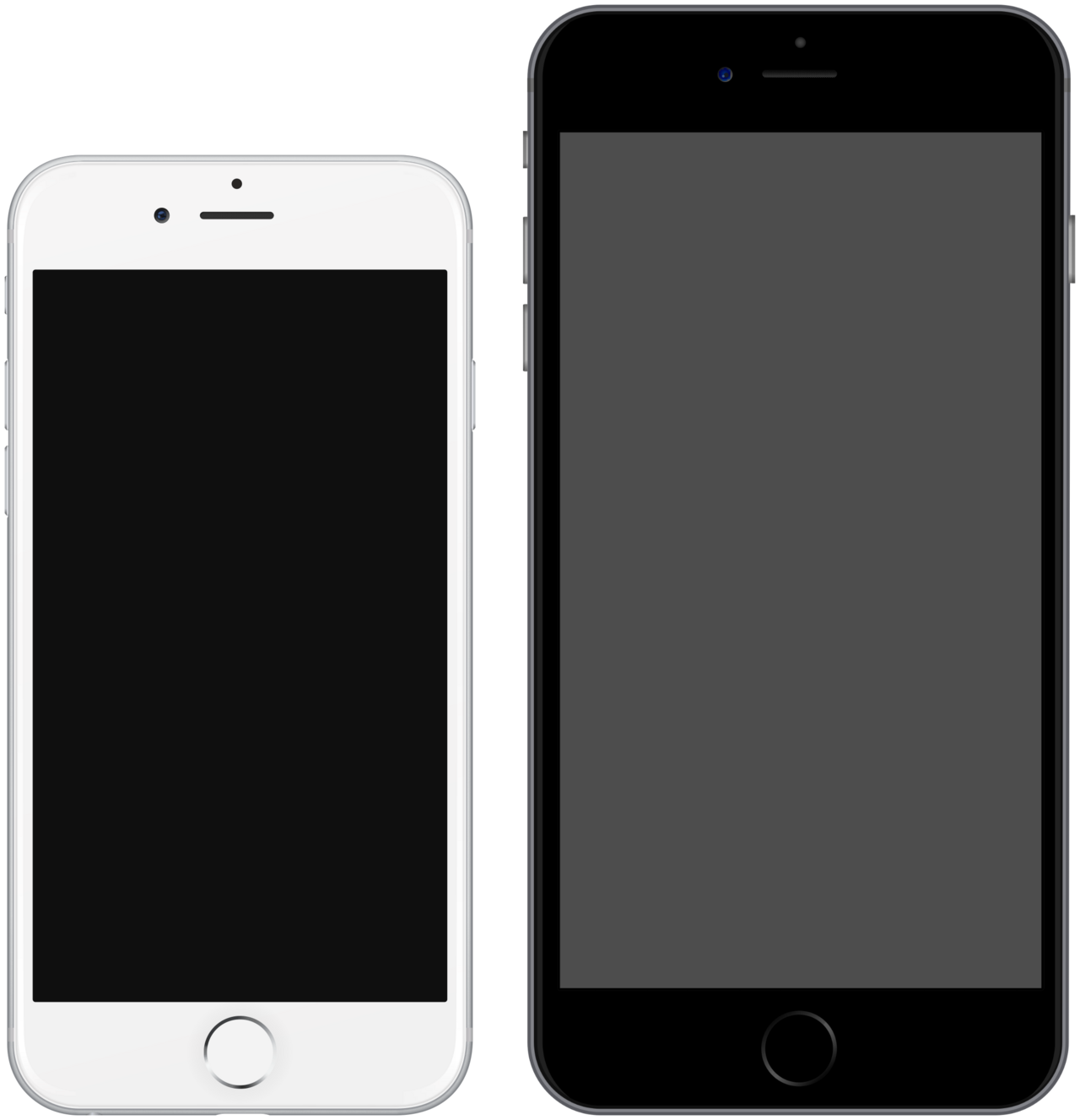

With its 5.5″ display, the iPhone 6 Plus was very competitive with the largest Android smartphones and phablets, which had helped Android cut into into iPhone sales.

The iPhone 6 Plus is even bigger and heavier than the iPhone 6 , and it was the first iPhone to provide a full 1920 x 1080 resolution display – the same as HD TV. The screen is curved at its edges, and its back is made of aluminum. Finishes include gold, silver, and space gray.

The larger size provides room for a really high capacity battery, and Apple specs claim about twice as much time for phone calls, online access, listening to music, streaming video, or whatever else you may do. Apple moved the power button from the top of the iPhone to the side, claiming it improved accessibility.

Specs (via Low End Mac)

  • Announced: 2014.09.09 and available 2014.09.19 at $299 (16 GB), $399 (64 GB), and $499 (128 GB) with a two-year wireless contract. ($749, $849, and $949 respectively without contract.)
  • Cpu: 1.4 GHz 64-bit dual-core Apple A8
  • Ram: 1 GB
  • Video: up to 14 hours
  • Display: 5.5″ 1080 x 1920 pixel 24-bit multitouch screen at 401 ppi
  • Code Names: N56
  • Weight: 6.07 oz. (172 g)
  • Dimensions: 6.22″ x 3.06″ x 0.28″ (156.1 x 77.8 x 7.1 mm)
  • Included Accessories: earbuds, lightning cable
  • Identifier: iPhone7,1
  • Model Number: A1522 (GSM), A1522 (CDMA), A1524
  • Architecture: 64-bit
  • Graphics Engine: 3-core PowerVR SX6450
  • Cameras Rear: 8.0 MP autofocus with LED flash, 1080p video front: 1.2 MP FaceTime camera
  • Rear: 8.0 MP autofocus with LED flash, 1080p video
  • Front: 1.2 MP FaceTime camera
  • Sensors: proximity, ambient light, 3-axis gyroscope, accelerometer, assisted GPS, compass, Nike+iPod
  • I/O Port: Lightning
  • Wifi: 802.11b/g/n/ac
  • Bluetooth: 4.0
  • A1549 Gsm: UMTS/HSDPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz), GSM/EDGE (850, 900, 1800, 1900 MHz), LTE (Bands 1, 2, 3, 4, 5, 7, 8, 13, 17, 18, 19, 20, 25, 26, 28, 29)
  • A1586: CDMA EV-DO Rev. A and B (800, 1700/2100, 1900, 2100 MHz), UMTS/HSDPA+/CD-HSDPA (850, 900, 1900, 2100 MHz), TD-SCDMA 1900(F) and 2000(A), GSM/EDGE (850, 900, 1800, 1900 MHz), LTE (Bands 1, 2, 3, 4, 5, 7, 8, 13, 17, 18, 19, 20, 25, 26, 28, 29), TD-LTE (Bands 38, 39, 40, 41)
  • Gps: Infineon PMB2525 assisted by EDGE, 3G, and WiFi
  • Battery: 2915 mAh lithium ion
  • Battery Life: Talk: up to 24 hours on 3G Standby: up to 384 hours Internet: up to 12 hours on 3G, LTE, or WiFi Video: up to 14 hours Audio: up to 80 hours
  • Talk: up to 24 hours on 3G
  • Standby: up to 384 hours
  • Internet: up to 12 hours on 3G, LTE, or WiFi
  • Audio: up to 80 hours
  • Original Os: iOS 8
  • Maximum Os: current
  • Itunes Versions: iTunes 11.4 and later.
  • Mac Os Required: OS X 10.6.8 or later
  • Windows Versions Supported: 7, Vista, XP Home or Professional SP3 or later
